Stainless steel air shower room with electronic interlock system
Air shower room description:
Air showers provide a modular assembly method that can be assembled into air showers sizes of various lengths according to actual needs.
| Air shower room |
| Dimension | 1800(width)×2300(height)×1000 (one piece length) |
| Puring area dimension | 800(width)×1900(height) |
| Puring efficiency | ≥0.5umdust,≥99.99%(sodium flame) |
| Wind speed | ≥27m/s |
| Time | 0~99sec(adjustable) |
| Circulating wind volume | 800~1000M3/h |
| voltage | 380V-50Hz or 220V-50Hz |
| power | 0.75Kw |
| Control panel | Adjust the time of it |
| Infrared device | Open or closed automatically |
Air shower room features:
Yaning air shower & air shower channel standard configuration functions and features:
■ It adopts fully automatic control operation, two-door electronic interlocking, infrared induction automatic shower, and double door locking when blowing.
■ Cold plate spray series, using multi-layer pickling technology, electrostatic dustless spray treatment.
■ All stainless steel doors, door frames, handles, thicker floor plates, and air shower nozzles are used as the basic configuration.
■ LCD time display, air shower time is 0~99s adjustable, and shows the air shower time.
■ The air blowing system using the Archimedes spiral design achieves an ultra-strong wind speed of 25m/s~30m/s, ensuring that the personnel and goods entering the clean room can achieve the perfect effect of complete dust removal.
■ Advanced mute system, quieter operation, less impact on working personnel.
■ A unique air freshening system is used to completely eliminate the odors generated in the long-term closed air shower and air shower channels.
Yaning air shower & air shower channel added optional practical features:
1, photoelectric sensor automatic function system, adjustable door opening delay time.
2, automatic identification function system (with self-sensing card, password, fingerprint, etc.).
3, automatic ozone sterilization system, automatic UV disinfection system.
4, automatic addition of electrostatic ion generation function system, system heating function (used in cold winter).
5. Adjustable delay opening function system (to prevent the dust from flying to the clean area after blowing, it can be opened to enter the clean area after a preset time after the shower is completed).
6. Filter failure early warning function system (automatically reminds the replacement of high efficiency filter when the high efficiency filter reaches the final resistance).
7, automatic self-purification function (in the case of non-usual use, the air shower room automatically runs once every certain time, in order to maintain the indoor air shower cleanliness).
8. According to the requirements of non-standard custom.

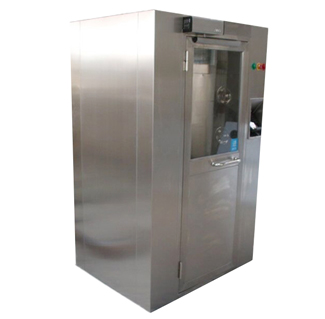

Yaning air shower room photo
